FEAL & Schüco

Glass Facade Systems

Structural and continuous curtain wall systems for commercial buildings, office complexes, and premium residential projects. Engineered for performance and aesthetics.

Glass Facade Systems
Curtain Walls

Architectural Excellence

Our glass facade systems combine thermally insulated aluminium profiles with cutting-edge engineering. From fully glazed structural facades to self-supporting curtain walls, we deliver solutions that meet the highest architectural and energy standards.

U-values from 0.70 W/m²K
Sound protection up to 43 dB
Glass weights up to 1,080 kg supported
Wind resistance up to 3.0 kN/m²
FEAL Systems

FEAL Facade Profiles

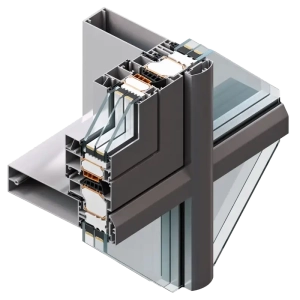

FEAL Fasada 50 FK

Fasada 50 FK

High-quality system for continuous, structural, and self-supporting fully glazed facades. Thermally insulated aluminium profiles deliver excellent energy efficiency.

Visible Width50 mm
U-Value≥ 0.72 W/m²K
SoundUp to 43 dB
Glazing4–56 mm
Mullion90–270 mm
TypeStructural

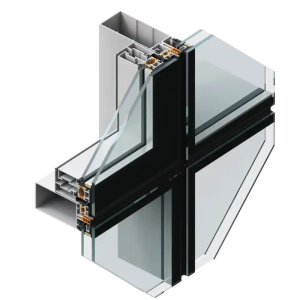

FEAL Fasada 60 K

Fasada 60 K

Modern system for self-supporting facade constructions. Excellent energy efficiency, durability, and aesthetic adaptability for contemporary architecture.

Visible Width60 mm
U-Value≥ 0.70 W/m²K
SoundUp to 42 dB
Glazing4–56 mm
Mullion41–270 mm
TypeSelf-Supporting
Schüco Systems

Schüco FWS Facade Systems

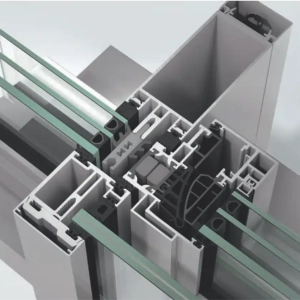

Schüco FWS 50

Schüco FWS 50

Flexible facade system for facades and roof skylights. Attractive design options with optimized fabrication and installation processes. Wide range of elements.

Visible Width50 mm
U-Value (Uf)≥ 1.5 W/m²K
Mullion50–250 mm
Max Glass1,080 kg
Wind3.0 kN/m²
WaterRE 1200

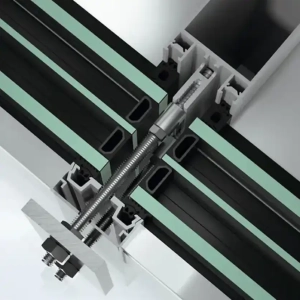

Schüco FWS 60

Schüco FWS 60

60mm visible width with high design flexibility. Wide choice of pressure plates and covers, fully compatible with Schüco window, door, and sliding systems.

Visible Width60 mm
U-Value (Uf)≥ 1.3 W/m²K
Mullion50–250 mm
Max Glass1,080 kg
Wind3.0 kN/m²
WaterRE 1200
Types

Facade Configurations

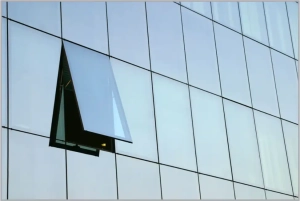

Structural Facades

Structural Facades

Fully glazed facades with hidden profiles for a seamless glass appearance. Maximum transparency and modern aesthetics.

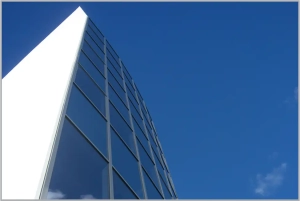

Continuous Facades

Continuous Facades

Mullion-transom curtain walls with visible aluminium profiles. Versatile configuration for any building geometry.

Get Started

Glass Facades Engineered for Your Project

Send us your architectural drawings and we'll provide a complete facade solution with pricing within 48 hours.
